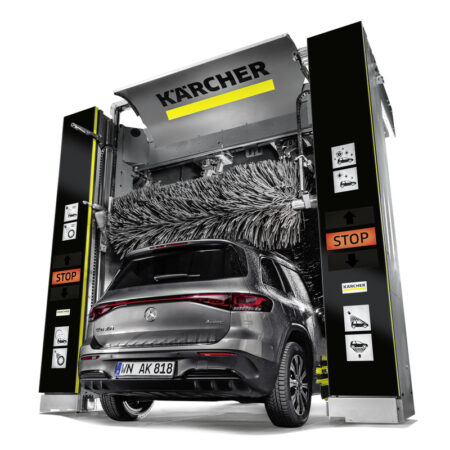

With different passage widths the Karcher Gantry Car Wash CW 3 Klean!Star is suitable for washing vehicles of various sizes and track widths. The linear wheel washer with scissors mechanism detects the vehicles even if they are not in the middle. For optimal vehicle contour detection the side brushes are tilted or locked by up to 15° – for superb cleaning results of the upper vehicle areas as well as the sills. The 3-stage K!Dry dryer with all-round drying ensures the perfect drying result without any undesired dripping. Customised high-pressure options, efficient cleaning and care programmes, as well as the powerful and effective detergent of the Kärcher Klear!Line, complement the wash experience.
K!Design – Distinctive design, advanced technology
Available either in the Kärcher design or in individual preferred colour.
K!Dry – Perfect all-round drying
Powerful 85-degree, 3-stage dryer with no undesired dripping. For universal use.
Extended contour width at mirror and wheel washer height
More space for safe and comfortable positioning of the vehicle. Suitable for different sized vehicles.
Integrated water saving function
Protects valuable resources.
Lowers the operating costs.
Intelligent frame concept
For the safe and time-saving installation of the system.
Lower costs for installation.
Fast wash programmes

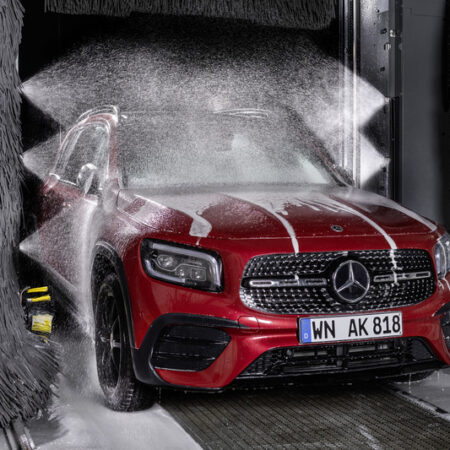

Contour-following all-round high pressure K!Contour cleans together with the brush wash in one run
Application of drying aid or wax from the back enables a washing and drying programme in just two runs
Variable dimensions
K!Adjust can fit every wash hall thanks to its height adjustment
Extended drive-through widths to accommodate all vehicles
Technical data on the Karcher Gantry Car Wash CW 3 Klean!Star
| Washing height (mm) | 2100 – 2900 |
| Drive-through width (mm) | 2450 / 2600 |
| Fresh water connection, volume (l/min) | 80 |
| Fresh water connection, pressure (bar) | 4 |
| Voltage (V) | 400 |
| Frequency (Hz) | 50 |
| Number of current phases (Ph) | 3 |
