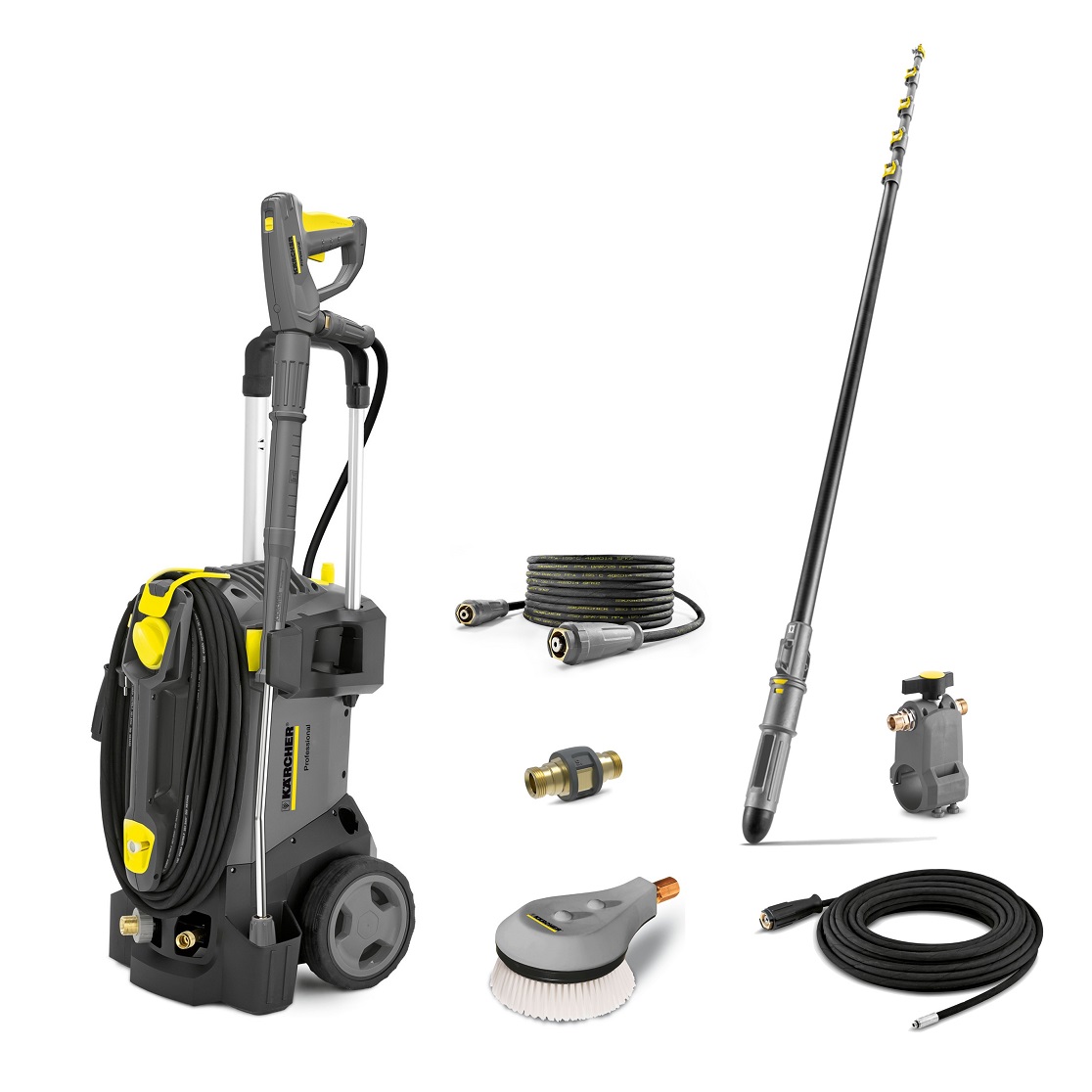

Karcher HD 5/15 & Wash Brush Solar Panel Cleaner – includes the compact, lightweight and versatile HD 5/15 C cold water high-pressure cleaner, which offers outstanding mobility and is suitable for both vertical and horizontal operation.
The machine is fitted with sophisticated accessory storage, and the brass cylinder head and automatic pressure relief ensure a long service life. At the same time, it impresses with innovative new developments that increase working convenience for the operator in the long term by ensuring effortless operation and time-saving set-up and dismantling. The EASY!Force high-pressure gun makes use of the recoil force of the high-pressure jet to reduce the holding force to zero, while the EASY!Lock quick-release fasteners make handling five times faster than with conventional screw connections, without compromising when it comes to robustness and longevity. Overall, a comprehensive equipment package for excellent cleaning results, with a high level of convenience and a long service life.
Save time and energy: EASY!Force high-pressure gun and EASY!Lock quick-release fasteners
Fatigue-free work at last: the EASY!Force high pressure gun. EASY!Lock quick-release couplings: durable and robust. And five times faster than screws.
Portability
Integrated carrying handle on the front of the machine enables easy loading and convenient transport. Push handle can be retracted at the push of a button. Compact construction style.
Flexibility
Vertical and horizontal operation possible. The wheels are not on during horizontal operation. As such, the machine offers maximum stability. Separate park and transport position for the spray unit.
Quality
The automatic pressure relief protects the components and extends the service life of the machine.
High-quality brass cylinder head.
Large, easy-to-reach water fine filter for protecting the pump against dirt particles in the water.
Accessory storage
Screw connection (M 18 × 1.5) for storing a Surface Cleaner directly on the machine.
Practical nozzle compartments for triple nozzle and rotary nozzle.
Rubber strap for fixing the pressure hose.
Telescopic lance TL 7 F – with up to 7 metre reach made from robust and lightweight glass fibre. With practical quick-release fasteners for simple retraction and extension. Perfect for window, facade and solar panel cleaning with brushes and osmosis water, up to 7 m long telescopic lance TL 7 F made from glass fibre. Practical quick-release fasteners make possible comfortable retraction and extension, the clamping force can be individually set and adjusted effortlessly and without tools. A rotatable base ensures very simple and ergonomic working – if required, a carrying strap can be attached directly to the base.
iSolar HP hose 7 – high-quality and flexible high-pressure hose with rubber covering is suitable for use in combination with the iSolar TL 7. The outer layer of the hose has especially good sliding characteristics – ideal for extending and retracting the telescopic rod.
Rotating wash brush – brush gently removes fine dust and traffic film from all surfaces. Temperature resistant up to 60°C. The water pressure drives the rotating brush so that minimum effort is required by the operator to clean the surface.
Technical data
| Supply voltage (Ph/V/Hz) | 1 / 230 / 50 |
| Flow rate (l/h) | 500 |
| Inlet temperature (°C) | 60 |
| Working pressure (bar/MPa) | 150 / 15 |
| Max. pressure (bar/MPa) | 200 / 20 |
| Connected load (kW) | 2.8 |
| Power cable (m) | 5 |
| Nozzle size (mm) | 32 |
| Water inlet | 3/4″ |
| Weight (with accessories) (kg) | 25.7 |
| Weight incl. packaging (kg) | 28.2 |
| Dimensions (L x W x H) (mm) | 380 x 360 x 930 |
Equipment on the Karcher HD 5/15 & Wash Brush Solar Panel Cleaner
- Spray gun: EASY!Force
- High-pressure hose: 10 m, DN 6, 200 bar (2 pieces)
- Spray lance: 840 mm
- Triple nozzle (0°/ 25°/40°): manual
- Cleaning agent function: Suction
- Pressure switch-off
- TL 7 F telescopic pole
- iSolar 8.5 m hose
- Vario joint
- Rotating wash brush
- Low pressure adapter
