Resource-conserving yet enormously powerful: the innovative Kärcher HDS-E 8/16-4 M 24 kW Hot Water High Pressure Cleaner offers a 24 kW heating output and a high work temperature of maximum 85°C. It is also extremely energy efficient. The innovative, highly effective boiler insulation of the electrically heated machine reduces the power consumption in stand-by mode by a full 40%. When the eco!efficiency mode is activated, the high-pressure cleaner automatically switches to highly efficient 60°C operation, which is entirely sufficient for most cleaning tasks. If, however, very oily and greasy dirt needs to be removed, the maximum possible work temperature is worth using. With Servo Control, it is easy to maintain a temperature of up to 70°C, even in continuous operation. Additional innovative details such as the EASY!Force high-pressure gun, which makes use of the recoil force of the high-pressure jetto reduce the holding force for the operator to zero, as well as the EASY!Lock quick-release fasteners, which make set-up and dismantling five times faster than with conventional screw connections, round off the outstanding equipment package.
Highly energy efficient, for high cost savings
Highly effective insulating material saves up to 40% energy in stand-by mode.
Unique eco!efficiency mode.
Particularly high work temperature
Large water reservoir (max. 85°C).
Up to 45°C in continuous operation under full load or 70°C with Servo Control.
Save time and effort: EASY!Force high-pressure gun and EASY!Lock quick-release couplings.
Effortless operation at last: the EASY!Force high-pressure gun.
EASY!Lock quick-release couplings: durable and robust. And five times faster than screws.
Servo control
For delivering a significantly higher water temperature to the accessories.
Application areas

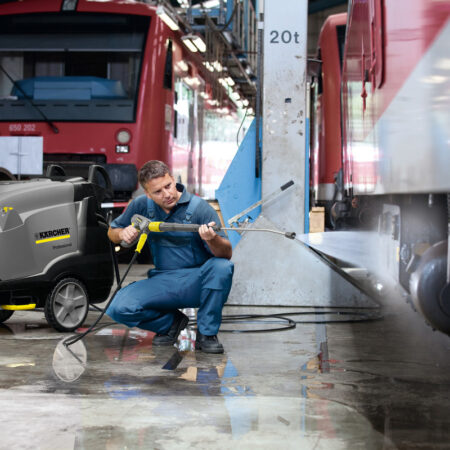

Electrically heated hot water high-pressure cleaner for exhaust-free operation in indoor areas.
Technical data
| Power supply (Ph/V/Hz) | 3 / 400 / 50 |
| Flow rate (l/h) | 300 – 760 |
| Working pressure (bar/MPa) | 30 – 160 / 3 – 16 |
| Temperature (for supply 12 °C) (°C) | min. 45 – max. 85 |
| Connected load (kW) | 29.5 |
| Power cable (m) | 5 |
| Heating output (kW) | 24 |
| Weight (with accessories) (kg) | 122.1 |
| Weight incl. packaging (kg) | 133.8 |
| Dimensions (L × W × H) (mm) | 1330 x 750 x 1060 |
Scope of supply
- Spray gun: EASY!Force Advanced
- High-pressure hose length: 10 metre
- High-pressure hose specification: DN 6, 250 bar
- Spray lance: 1050 mm
- Power nozzle
Equipment on the Kärcher HDS-E 8/16-4 M 24 kW Hot Water High Pressure Cleaner
- Exhaust-free electric heating
- Control bar with display light
- Pressure cut-off
- 2 Detergent tanks
- Servo Control
