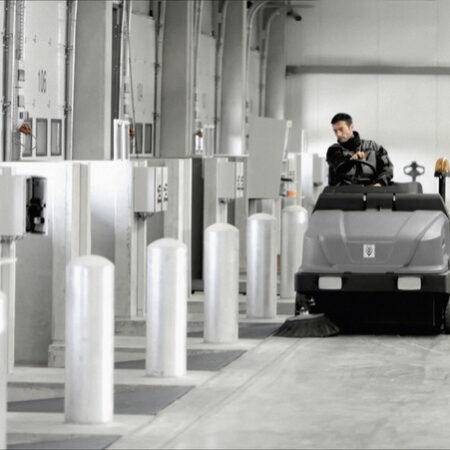

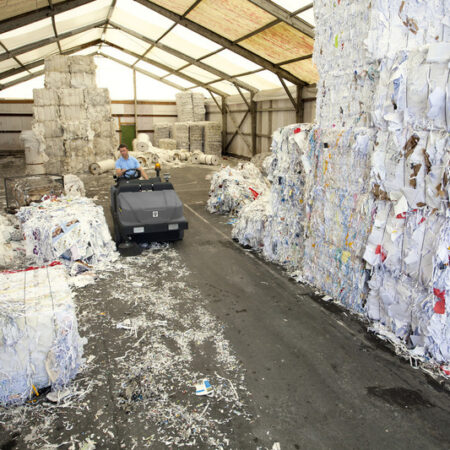

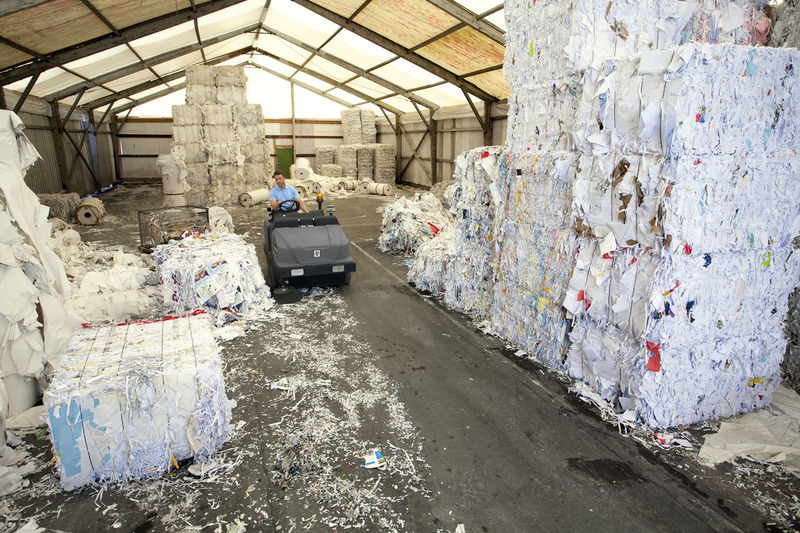

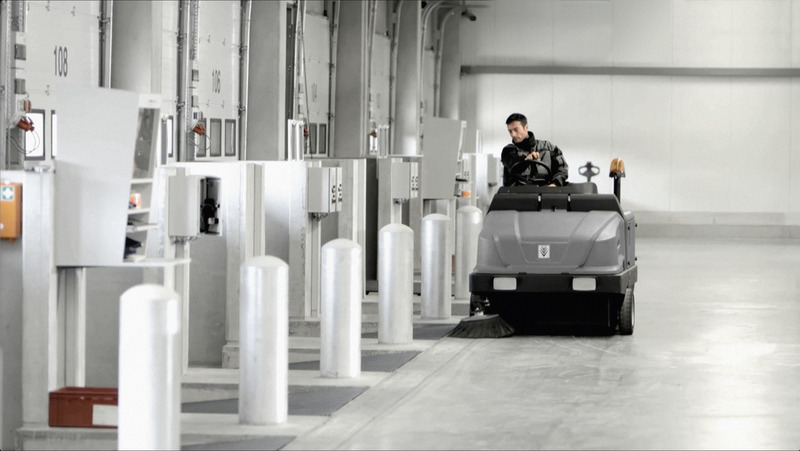

The durable Kärcher KM 130/300 R D Classic Industrial Ride On Sweeper is designed for tough applications in construction material, metalworking or foundry companies, as well as other industries with dirty conditions. The reliable ride-on sweeper can be operated easily and comfortably using a lever. The container with the swept material is emptied by a hydraulic high-dump system. The enormous capacity of the container for the swept material is 300 litres, allowing long work intervals.
Thanks to the robust steel chassis with various corrosion protection, the machine is optimally equipped for applications in even the harshest conditions. The hydraulic rear wheel drive ensures good and easy manoeuvrability, also in confined spaces. Another feature is the Flexible Footprint system, which guarantees optimal sweeping results on different grounds – and with reduced brush wear. The technical components are easily accessible when it comes to repair or maintenance cases. The standard solid rubber tyres prevent mandatory breaks due to flat tyres and allow sweeping on all types of terrain.
Hydraulic rear-wheel drive with solid rubber tyres
Good manoeuvrability and control even in tight spaces. Works even on sharp surfaces without causing tyre punctures. Clear and intuitive layout and robust control elements for easy operation. Vacuum sweeper KM 130/300 R D Classic:

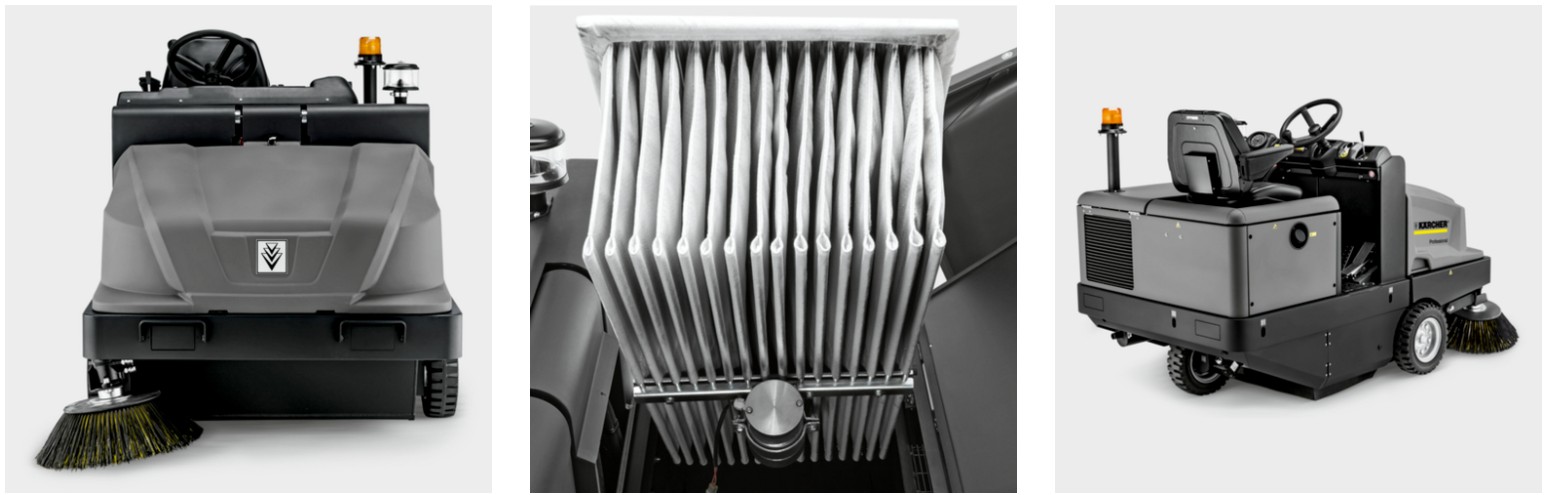

Large-area pocket filter with vibration motor
Large filter area for dust-free vacuuming. Cleaning by means of vibration motor.
Robust steel chassis with multiple corrosion protection
Can be used under tough working conditions. Durable machine and components.
Easy servicing
Very simple technology with tried-and-tested components: fully hydraulic drive, electric rather than electronic.
Easy access to all technical components.
Hydraulic high container emptying
Waste can be emptied safely, easily and with no contact.
Effortless container lift up to 1.52 m.
Dustpan principle
Good intake of fine and coarse waste.
Low dust dispersion.
Technical data
| Drive type | Diesel |
| Traction drive | Four-stroke engine |
| Motor manufacturer | Yanmar |
| Drive– performance (kW) | 15.8 |
| Max. area performance (m²/h) | 13000 |
| Working width (mm) | 1000 |
| Working width with 1 side brush (mm) | 1300 |
| Working width with two side brushes (mm) | 1550 |
| Waste container (l) | 300 |
| Climbing ability (%) | 18 |
| Working speed (km/h) | 10 |
| Filter areas (m²) | 7.8 |
| Weight (with accessories) (kg) | 923 |
| Weight, ready to uset (kg) | 923 |
| Weight incl. packaging (kg) | 923 |
| Dimensions (L x W x H) (mm) | 2040 x 1330 x 1430 |
Scope of supply
- Pocket filter
- Wheels, solid rubber
Equipment on the Kärcher KM 130/300 R D Classic Industrial Ride On Sweeper
- Filter cleaning manual
- Main sweeper roller adjustable
- Power steering
- Suction volume regulation
- Dustpan principle
- Forwards traction drive
- Backwards traction drive
- Suction
- Hydr. high dump
- Outdoor use
- Elapsed time counter
- Sweeping function, can be switched off
