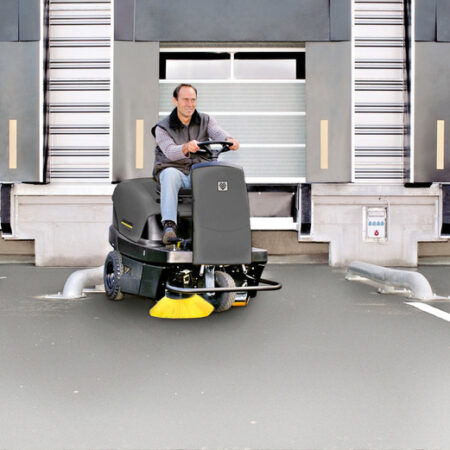

Kärcher Vacuum Sweeper Ride-On KM 100/100 R Bp – Drive: – 24 V/750 W DC motor – 1 pedal for forward and reverse – small turning radius (3350 mm) – automatic parking brake with vacuum technology – automatic engine cut out when driver leaves seat – effective round filter system with automatic filter cleaning Sweeping/vacuum system: This machine uses the overthrow principle. In other words, the roller brush throws the dirt up and back into the dirt container.

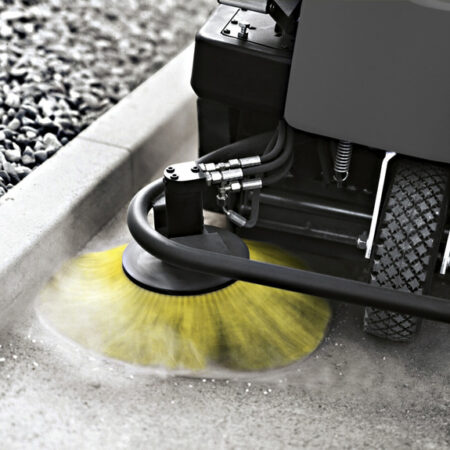

The floating roller brush adjusts automatically to uneven surfaces. The filter and roller brush can be replaced without tools. With integrated coarse dirt flap for coarse waste, e.g. cans, split, gravel or wet leaves. The side brush and roller brush are hydraulically driven. A second optional side brush is available. Dirt container: Both 50 litre dirt containers can be removed from the side. Operation: The main roller brush and side brush can be automatically lifted and lowered via a switch. Forward and reverse via one pedal.
Impact protection
Protects the sweeper and obstacles within the area being cleaned.
Large filter area with automatic filter cleaning system
The filter is automatically cleaned when the machine is switched off – for continuous low-dust sweeping for long periods of uninterrupted use. Filter cleaning can also take place manually. Filter replacement without tools.
Easy to maintain
Filter and roller brush easy to remove without tools for flexible maintenance.
EASY Operation operating concept
Clear and logical arrangement of all controls in the handle and field of view for ease of use.
Standard symbols for all Kärcher sweepers.
Technical data
| Traction drive | DC motor |
| Drive– performance (V/kW) | 24 / 2.1 |
| Drive type | Electric |
| Max. area performance (m²/h) | 6000 |
| Max. area performance with 2 side brushes (m²/h) | 7800 |
| Working width (mm) | 700 |
| Working width with 1 side brush (mm) | 1000 |
| Working width with two side brushes (mm) | 1300 |
| Battery capacity (Ah) | 240 |
| Battery voltage (V) | 24 |
| Battery runtime (h) | max. 2.5 |
| Waste container (l) | 100 |
| Climbing ability (%) | 18 |
| Working speed (km/h) | 6 |
| Filter areas (m²) | 6 |
| Weight (with accessories) (kg) | 320 |
| Weight, ready to uset (kg) | 300 |
| Dimensions (L x W x H) (mm) | 2006 x 1005 x 1343 |
Scope of supply
- Polyester round filter
- Wheels, non-marking
Equipment on the Kärcher Vacuum Sweeper Ride-On KM 100/100 R Bp
- Filter cleaning manual
- Filter cleaning automatic
- Main sweeper roller, floating
- Suction volume regulation
- Coarse dirt flap
- Overhead sweeping principle
- Forwards traction drive
- Backwards traction drive
- Suction
- Outdoor use
- Indoor use
- Battery indicator
- Elapsed time counter
- Sweeping function, can be switched off
