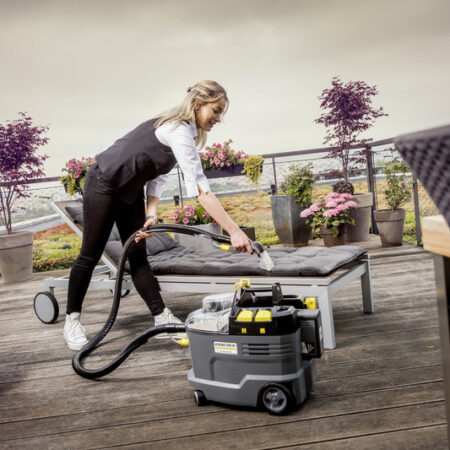

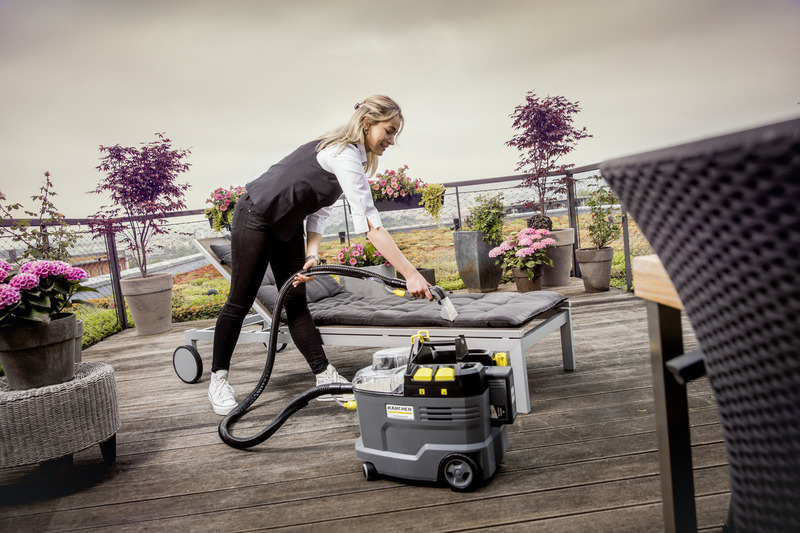

The Karcher Battery Spray-Extraction Cleaner Puzzi 9/1 Bp is the world’s first professional battery powered spray extraction machine on the market, capable of cleaning upholstery, carpets and other textile areas anywhere and at any time, with no reliance on external power sources. Thanks to the powerful 36 V Kärcher Battery Power+ battery supplied as standard, the robust cordless spray extraction cleaner has an unlimited operating radius for cleaning. This is achieved by spraying cleaning solution under pressure deep into the textile fibres, before sucking it back up along with the loosened dirt. A versatile machine for every industry, from the hotel and hospitality sector right through to vehicle interior cleaning: The Puzzi 9/1 Bp Adv boasts exceptional hygienic cleaning results and low-noise operation, making it ideal for public areas. What’s more, the ergonomic carrying handle makes it easy to transport and it comes with an extensive range of accessories. The following are included as standard: Kärcher Battery Power+ 36/75, fast charger, upholstery nozzle, spray vacuum hose, floor nozzle, spray extraction tube, 2-in-1 container for filling the fresh water tank and emptying the dirty water, integrated accessory storage and more.

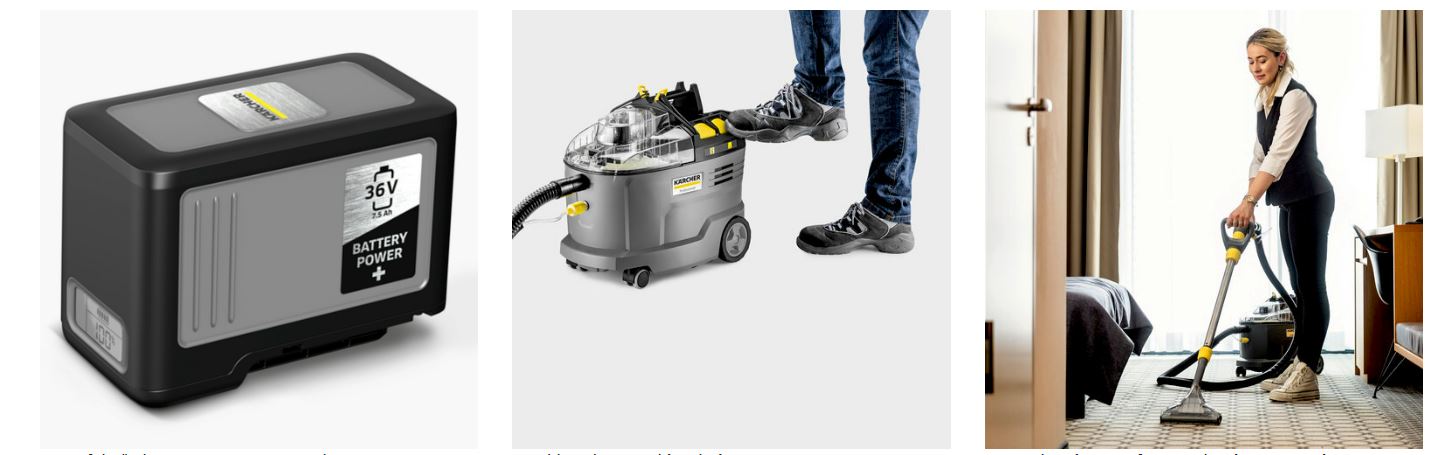

Powerful Kärcher Battery Power+ 36V battery
Cordless freedom of movement. Real Time Technology with LCD battery display: remaining running time, remaining charging time and battery capacity. Compatible with all machines from the 36 V Kärcher Battery Power+ battery platform.
Durable, robust machine design
Long service life ensures high efficiency. Robust and hard-wearing diaphragm pump. Two large buttons operated by hand or foot for convenience.
Comprehensive set of carpet cleaning accessories
Flexible suction lip for optimum suction angle and ultimate drying results. 240 mm wide floor nozzle with integrated spray/suction tube. Ergonomic two-handed grip for extra user comfort.

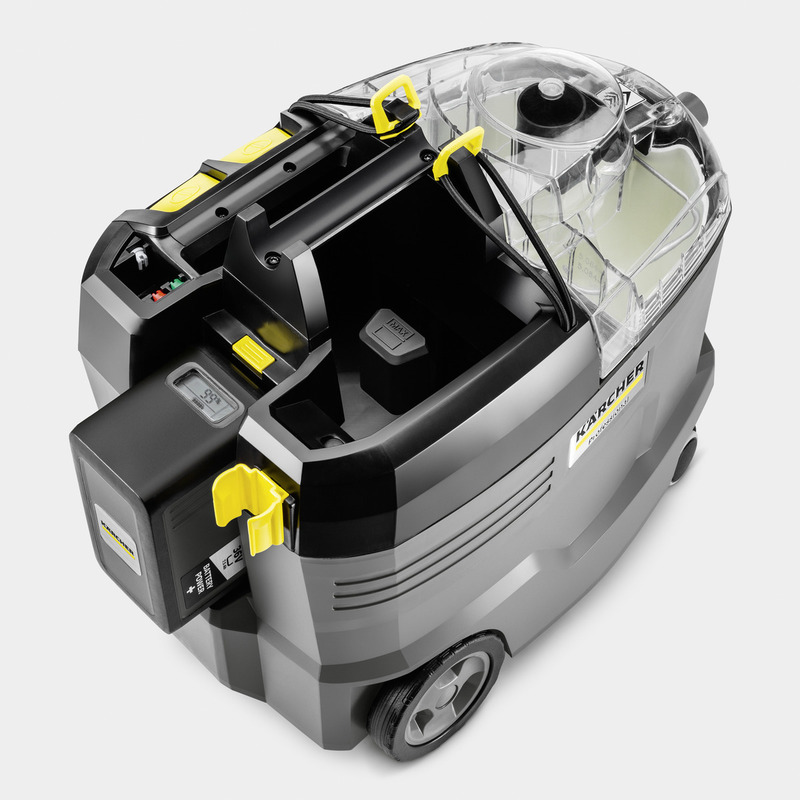

Removable, smart 2-in-1 container
Quick and simple to fill the fresh water tank.
Convenient and simple to remove dirty water.
Quick-start illustration Puzzi 9/1 Bp for enhanced user safety.
Ergonomic carrying handle
Convenient, one-handed transport.
Conveniently well-balanced machine.
Suction tube holder integrated in carrying handle for secure and convenient transport.
Integrated accessory storage
All of the accessories can be stowed conveniently on the machine and are therefore always close at hand.
Practical, built-in storage compartment for cleaning agent tabs.
Safe storage, even during transport.
Handy upholstery nozzle
Easy yet thorough cleaning of upholstery and upholstered furniture.
Technical data
| Battery platform | 36 V battery platform |
| Area performance (m²/h) | 12 – 18 |
| Tank of fresh/dirty water (l) | 9 / 7 |
| Air flow (l/s) | 57 |
| Vacuum (kPa) | 15 |
| Spray volume (l/min) | 0.5 |
| Spray pressure (MPa) | 0.16 – 0.22 |
| Turbine capacity (W) | 550 |
| Pump capacity (W) | 4 |
| Rated input power (W) | 575 |
| Sound pressure level (dB(A)) | 70 |
| Standard accessory ID | ID 32 |
| Voltage (V) | 36 |
| Capacity (Ah) | 7.5 |
| Number of batteries required (piece(s)) | 1 |
| Runtime per battery charging (min) | 35 (7.5 Ah) / 27 (6.0 Ah) |
| Battery charging time with fast charger 80%/100% (min) | 58 / 81 |
| Charging current (A) | 6 |
| Power supply for battery charger (V/Hz) | 100 – 240 / 50 – 60 |
| Weight without accessories (kg) | 7.6 |
| Weight incl. packaging (kg) | 17 |
| Dimensions (L x W x H) (mm) | 540 x 332 x 460 |
Equipment on the Karcher Battery Spray-Extraction Cleaner Puzzi 9/1 Bp
- Battery and charger included
- Battery: 36 V / 7.5 Ah Battery Power+ battery (1 piece)
- Battery charger: 36 V Battery Power+ quick charger (1 pc.)
- Spray/suction hose: 2.5 m
- Hose transport lock
- Spray/suction tube: 1 piece(s), 700 mm, Metal
- Motor protection filters
- Fresh water filter
- Integrated accessory storage
- Storage compartment for cleaning agent tabs
- Removable 2-in-1 container for fresh/dirty water
- Detergent: RM 760 tabs, 2 Tablets
- Spray/suction gun
